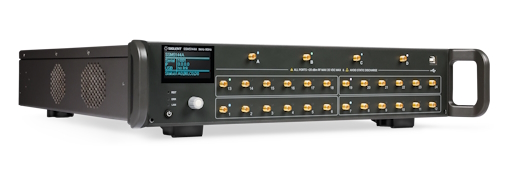

Switch matrix, 2 input ports, 6 output ports, 3.5mm female, 100 kHz~26.5 GHz.
Maximum frequency: 9 GHz/ 26.5 GHz
Maximum number of input ports: 4
Maximum number of output ports: 24
RF connector: 3.5mm female
Screen size: 2.4-inch
Maximum input power: 20 dBm
Characteristic impedance: 50 Ω
Maximum input DC voltage: 35 V
Size (W*H*D): 88.5 x 425 x 417.6 mm
Support a simplified multi-port calibration algorithm
Interface: LAN, USB Device, Direct Control (in), Direct Control (out)
Datasheet: Download
