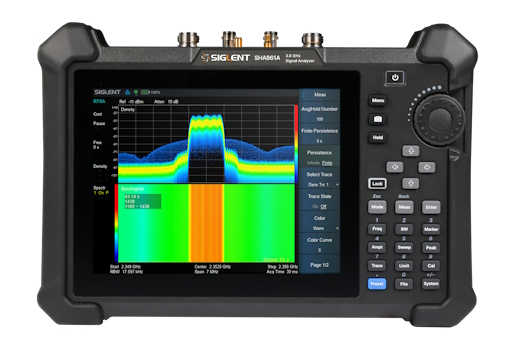

Analizzatore di spettro, di cavi e d'antenna, da 9 kHz a 3.6 GHz, preamplificatore, GPS, display touch da 8.4", batteria da 2.5h.
SPECTRUM ANALYZER
Frequency range: 9 kHz~3.6 GHz, 5 kHz usable
_________________________
CABLE AND ANTENNA ANALYZER
Frequency range: 100 kHz~3.6 GHz, 30 kHz usable
_________________________
VECTOR NETWORK ANALYZER (opt.)
Frequency range: 100 kHz~3.6 GHz, , 30 kHz usable
DANL: -165 dBm/Hz
Phase noise (1 GHz, Typ.): -104 dBc/Hz.@10 kHz offset
Preamplifier: standard
Dynamic range: 114 dB
Other functions: Advanced Measurement Kit, Analog Modulation Analysis, Digital Modulation Analysis, GPS location, Independent Source, DC Bias Out
Display: TFT LCD 800x600, 8.4" multi-touch screen
Battery life: 2.5 hours
Datasheet: Download
