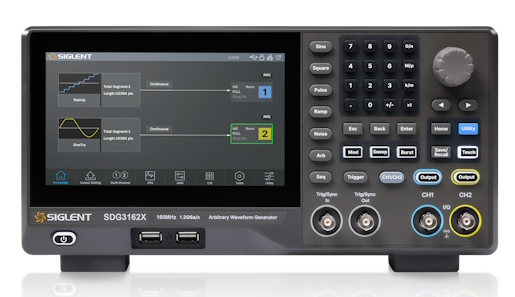

Generatore di funzioni arbitrario 160 MHz, display touch screen da 7'', 1.2 GSa/s, 2 CH, 16 bit, 20 Mpts/ch.
Bandwidth: 160 MHz
Num. of channels: 2
Sampling rate: 1.2 GSa/s (2X interpolation)
Vertical resolution: 16 bit
Max. amplitude: ±10 V
Display: 7" touch screen
Interface:
- standard: USB Host, USB Device, LAN
- optional: GPIB (USB-GPIB adaptor)
Rich analog and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
Sweep and Burst functions
Harmonic function
Waveform combining function
High precision frequency counter
196 built-in arbitrary waveforms
Dimensions: 312 x 162 x 126 mm
Weight: 2.73 kg
Datasheet: Download
