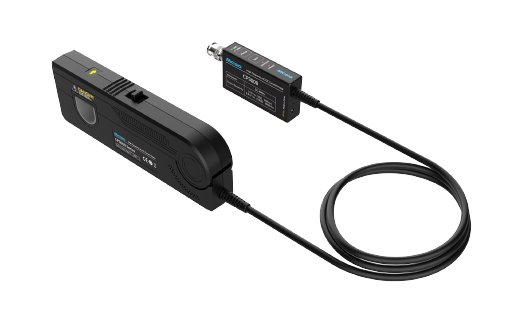

Sonda di corrente AC/DC, 8 MHz, 50A / 300A.
Bandwidth: 8 MHz
Rise time ≤ 53 ns
Range: 50 Arms (50A), 300 Arms (300A)
Max. current input: 500 Apk, 300 Arms
Accuracy: ±1% ± 10mA (50A), ±1% ±100 mA (300A)
Lowest measurable current: 10 mA (50A), 100 mA (300A)
Noise: < 1.5 mArms (50A), < 12 mArms (150A)
Output sensitivity: 1V/10A (50A, 10X), 1V/100A (300A, 100X)
Power supply: 12 Vdc
Datasheet: Download
