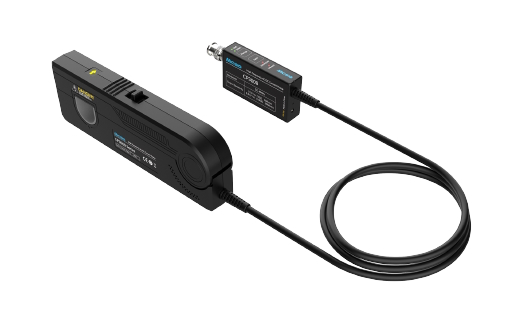

Sonda di corrente AC/DC, 10 MHz, 30A / 150A.
Bandwidth: 10 MHz
Rise time ≤ 46 ns
Range: 30 Arms (30A), 150 Arms (150A)
Max. current input: 300 Apk, 150 Arms
Accuracy: ±1% ± 10mA (30A), ±1% ±100 mA (150A)
Lowest measurable current: 10 mA (30A), 100 mA (150A)
Noise: < 1.5 mArms (30A), < 10 mArms (150A)
Output sensitivity: 1V/10A (30A, 10X), 1V/100A (150A, 100X)
Power supply: 12 Vdc
Datasheet: Download
