ALPHALAB

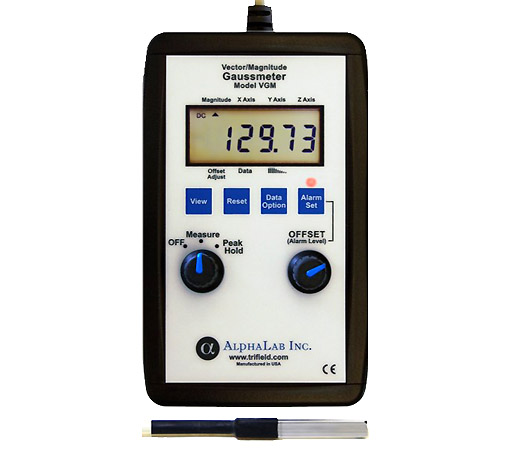

VGM
-

Vector/Magnitude gaussmeter that displays peak hold and magnitude; used to map magnetic fields 0.01-799.99 G.


TECHNICAL FEATURES

Range/Resolution: 0-799.99 G / 0.01 G. Includes polarity of X, Y, Z
Magnitude is sqrt of sum of squares

Accuracy: 1% of reading (from 16° to 29°C), 2% of reading (from -4° to 65°C) / Pointing accuracy 1% of arc
Offsets: Relative zero (subtracts present field from X, Y, Z), unlimited manual offset of X, Y, Z
Probe: 3-axis not detachable 6.3 x 6.3 x 50 mm long. All three sensors are within 1.5 mm of probe end

Peak Hold: 0.005 s time constant. Peaks in X, Y, Z and magnitude are recorded and stored separately
Alarm: associated with magnitude only, 5 ms response time (simultaneous red light)
Alarm Levels: 100 levels can be selected, from 1.00 to 790.00 G

Displays the magnitude of magnetic field regardless of probe orientation. Also can display X, Y, or Z components
When set to “Peak Hold”, displays the highest magnitude since the last time “Reset” was pressed. Also remembers and can display peak value of X, Y, Z (including polarity) since the last "Reset"
CE compliant

Interfaces: USB opzional (for data recording)
Dimensions: 147 x 97 x 51 mm
Weight: 332 g


AVAILABLE WITH OPTIONAL CASE AT 1245,00 EURO (VAT not included)



Datasheet >




-
The indicated shipment price may vary according to the number of boxes.
-
- 1194.00 €
