TEST EQUIPMENT CALIBRATION - ISO 9001

We do traceable calibration of electronic test equipment valid for the ISO9001 quality system.

We keep secondary standards, checked against national standards (Italian SIT) for the following:

Voltage (DC e AC, 1mV to 10 kV)
Current (1uA to 1kA, DC and AC)
Resistance
Frequency (up to 40 Ghz)
RF power (up to 40 GHz)

In particular, the frequency is maintained and distributed to the laboratories using two atomic standards (Cs and Rb), checked against the GPS satellite constellation. The accuracy reaches 3 parts in 10^12.

The reconditioned instruments can be delivered with ISO calibration if desired.

Then we specialize in calibration of EMC instruments. Those are calibrated with reference to national standards when possible, or to the applicable CISPR directive.
-
CALIBRATION LAB ACCURACY

Our calibration lab keeps the following incertitudes on measured values
For DC Voltage: From 200 mV to1000V 2·10-5 + 0,5 mV
For AC voltage: From 200 mV to 700V, 40Hz - 1 kHz: 4·10-4 + 5 mV
For DC Current: From 0,1mA to10A 2·10-4
For AC Current: From 200 mA to 2A, 40Hz - 1 kHz: 6·10-4
For DC resistance (10 Ohm<R<10 MOhm): 6·10-5
For DC resistance (100 mOhm<R<10 Ohm): 1·10-4
For frequency up to 40 GHz: 1·10-11
For RF power on 50 W, 7 mm line:
From 100 kHz to 5 GHz: 3%
From 5 GHz to 18,6 GHz: 5%
For RF power on 50 W, 3,5 mm line:
From 18 GHz to 40 GHz: 7%
AM modulation, carrier frequency up to 2GHz: 1,5%
FM modulation, carrier frequency up to 2GHz,
with deviation up to 300 kHz: 1,5%
-

-
  INSTRUMENTS THAT MAY BE CALIBRATED IN OUR LAB

RF directional coupler
Scalar Network Analyzer
Vector Network Analyzer
Spectrum Analyzer
Multifunction Calibrators
Frequency Meters
Microwave Frequecy Meters
BF and Function Generators
EFT/Burst Generators
ESD Generators
Pulse Generators
RF generators
TV Pattern Generators (base band)
Surge Generators
Tracking Generators
Milliohmmeters
AC Millivoltmeters
RF Field Metrs
Insulation Meters
Modulation Meters
Wow and flutter Meters
Level Meters/Generators
DVM

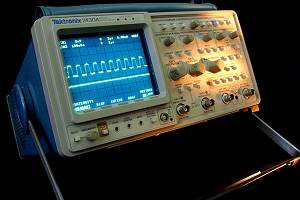

Analog and Digital Oscilloscopes
Current Clamp
LISN
Electrical safety multifunction instruments
High stability reference oscillators Update
Test set radio
RCS testers
AC Wattmeters

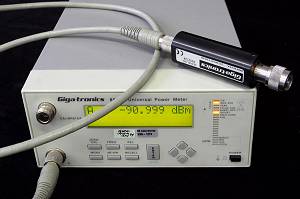

RF Wattmeters and Milliwattmeters

-
