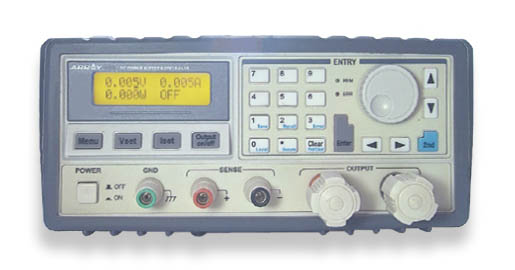

Alimentatore DC programmabile, 0-80 V, 0-10 A.
Voltage: 0 to 80 V
Current: 0 to 10 A
Ripple and Noise (20 Hz to 20 MHz)
- voltage?root mean square value): < 16 mVrms
- Voltage?peak-to-peak value): < 25 mVpp
- Current: < 6 mArms
- Common mode current: 1.5 mArms
Load regulation
- voltage: 3 mV
- current: 2 mA
Line regulation
- voltage: 2 mV
- current: 1 mA
Stability
- voltage: 0.02% + 3 mV
- current: 0.3% + 3 mA
Interfaces: RS232 (GPIB opt.)
Dimensions: 226 x 110 x 376 mm
Weight: 5.5 kg
Datasheet: Download
