SC1016

SIGLENT

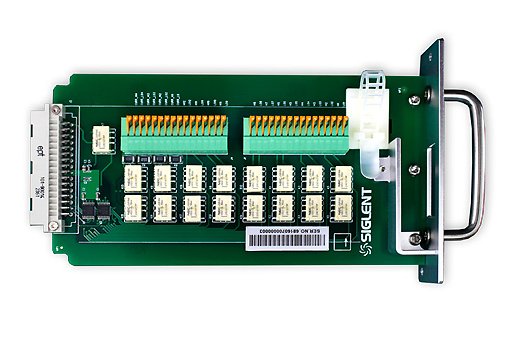

SC1016

Modulo multiplexer per i multimetri della serie SDM3000 (misure di VDC, VAC, IDC, IACA, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP).

Il costo di trasporto indicato può variare in funzione del numero dei colli

Max AC voltage: 125 Vrms or 175 Vpk, 100 kHz, 0.3 A switched, 125 VA (resistive load)
Maximum DC voltage: 110 V, 1 A switched, 30 VDC (resistive load)

Contact Life:
> 100000 operations, at 1 A / 30 VDC (at 0.5 Hz)
> 100000 operations, at 0.3 A - 125 VDC (at 0.5 Hz)

Contact resistance: 75 mΩ (maximum at 6 VDC, 1 A)
Actuation time: 5 ms maximum on/off

Maximum switching voltage: 250 VAC, 220 VDC
Maximum switching power: 62.5 VA / 30 W

Insulation resistance: minimum 1 GΩ (500 VDC)
Connector type: clamp terminal, #24 AWG wire size



NON ORDINABILE SEPARATAMENTE
